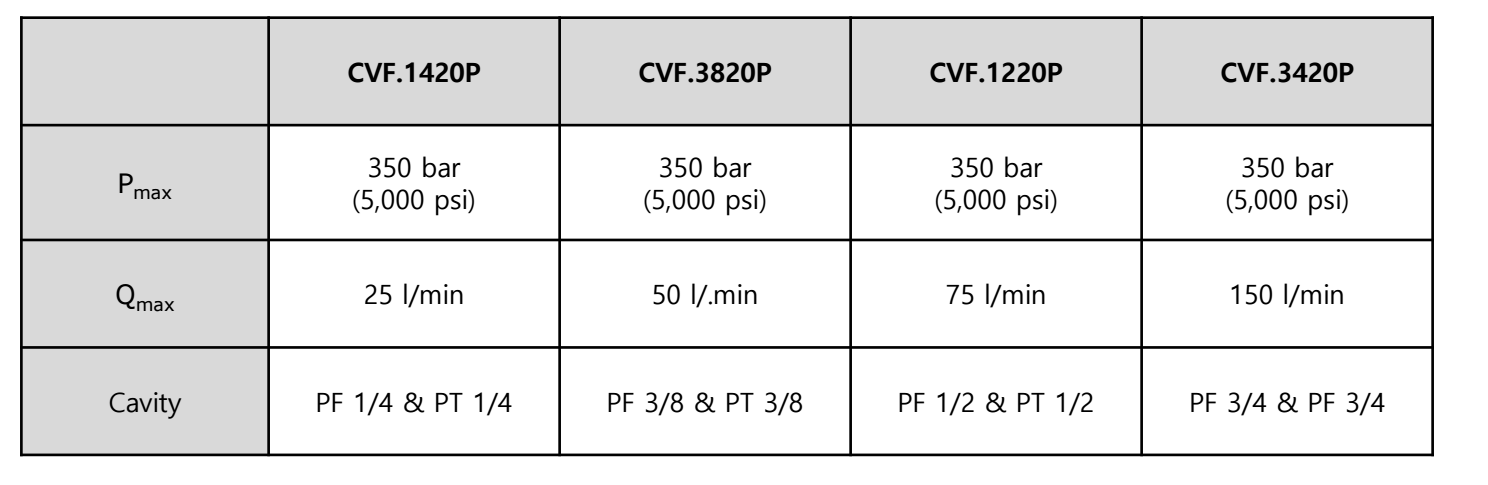

Hose Burst Valve, BSPP/BSPT Threads, Max Pressure 5,000Psi (350 bar), up to 40 GPM (150 L/min)

Line type hose burst valve, direct acting, flan seat valve

The hose burst valve HSF is a flow operated flat seat valve which prevents uncontrolled movement in the consumer in the event of a hose burst. The hose burst valve is open in the normal position and allows flow in both directions. If the pre-set actuating flow rate is exceeded as a result of a hose burst, for example, the valve quickly closes and blocks the flow from port ① to port ②.
