230V AC Loading dock leveler hydraulic power pack-AC1-93WEF/1HH(S)D
This Power Unit is used on for the flip type of loading dock levelers.
- Use sequence valve to control lip board
- Heavy duty & long duty
- With 3-phase AC motor and pump of low noise
- Adjustable down speed by flow control valve
- Description
- Components
- Data Sheet
This power pack has a three-phase Alternate current motor, no solenoid valve, a sequence valve to control lip board, can be easily controlled down speed by flow control valve. A high-pressure pump makes flow rate of 4.5 L/min @ 2300 Psi.
More Options on Motor and pump combinations, and tank capacities.
We provide a year warranty, and small orders are also accepted.
| Power | 0.75 KW |
| Voltage | Ac 230 V |
| Rotation Speed | 2800 RPM |
| Pressure | 16 MPa |
| Pump Displacement | 1.6 cc/r |
| Working Duty | S2 |
| Tank Capacity | 5 Liters |
| Mounting | Horizontal |
| Material | Plastic |

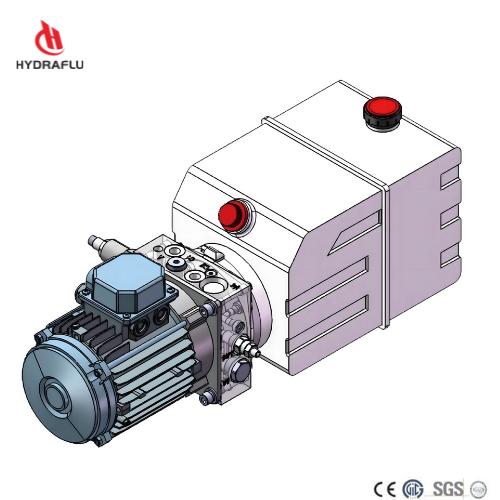

Dock leveler hydraulic power pack diagram:
Outline Dimension:
