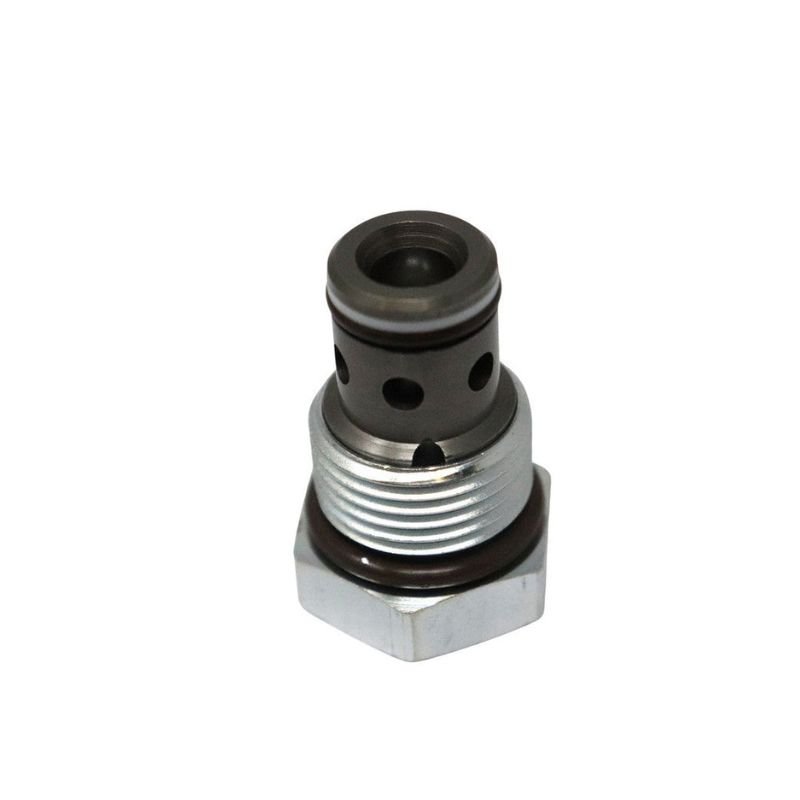

Ball Type Cartridge Check Valve

[CVC.0820B]

Pmax = 207 bar (3,000 psi)
Qmax = 30 l/min
Internal leakage : max 1 drops/min at 207 bar (3,000 psi)
Cavity : CTC.08-2W
Seal kit : SKC.08-2W1

[CVC.1020B]

Pmax = 207 bar (3,000 psi)
Qmax = 40 l/min
Internal leakage : max 1 drops/min at 207 bar (3,000 psi)
Cavity : CTC.10-2W
Seal kit : SKC.10-2W1

Feature
Data sheet
How To Order

A SCREW-IN, CARTRIDGE, DIRECT ACTING
BALL TYPE
» A screw-in, direct acting, ball type cartridge check valve.
Main use is as a blocking or load-holding device.
» This valve allow flow passage from ① to ②. A steel ball acts
as a check. And the flow is blocked in the opposite direction ② to ①.
» Industry common cavity.
» Ball seat is hardened ground to ensure low leakage and long life.
» Compact size.
» Cracking Pressure Option : Bias Spring options are available upon request.
» Cavity Type Option : GAS, UNF, or Metric cavities are available upon request.

BAll Type Check Valve Symbol:

symbol of check valve

Dimension: Dimension-ball type check valve

Cavity:

08-1 cavity

how to order ball type check valve

Hydraulic Cartridge Ball Check Valve – Precise Control, High Efficiency and Stability

The hydraulic cartridge ball check valve adopts a ball – valve – type structural design. It realizes one – way flow control through a precisely machined steel ball or conical valve core. Its core function is to allow fluid to flow unidirectionally from inlet ① to outlet ② and cut off in the reverse direction to prevent backflow. It is suitable for high – pressure and large – flow hydraulic systems and is widely used in fields such as construction machinery, agricultural equipment, and aerospace.

- Ball – shaped Valve Core Design: The ball – valve – type structure ensures uniform contact of the sealing surface, excellent sealing performance, low leakage rate, and can withstand high – pressure impacts (up to 35MPa).
- Low Opening Pressure: When the inlet pressure exceeds the preset value (such as 0.05 – 0.3MPa), the valve core opens quickly with a short response time, reducing system pressure loss.
- Compact Installation: Standardized chack valve cavity sizes, adapt to various hydraulic system configurations, save space, and are convenient for maintenance.

What is Cartridge check valve?

The cartridge valve is a kind of hydraulic control valve in which the valve core is inserted into a specially designed and processed integrated valve block. It has threads to screw in. There are several cavities to comply with–SAE, SUN special, Metric size.

How many types of check valves?

According to the shape of the valve core, it is divided into ball type valves and poppet type valves. The ball type check valve has a ball and spring, and the poppet type has the conical valve core and the valve seat are in conical surface sealing.

Do you have all types of check valves in stock?

Yes, we can supply most kinds of check valves, we are here to help you to select the most suitable model according to different flow rates, different pressures and different installation methods.
