12V Hydrulic Power Unit For Snow Plow
This Power Unit is specially designed for all kinds of trucks with different types of skis.
- Compact and easy to install
- Meets a variety of work requirements
- Various working circuits and hydraulic valves
- Hydraulic Cartridge Valves are optional
- Description
- Components
- Datasheet
Two hydraulic directional valves control two double-acting cylinders to swing left-right and up-down actions. With the 12V Dc motor supplied energy from 12v battery, an high pressure pump makes flow rate of 4 L/min @ 2300 Psi.
More Options on Motor and pump combinations, and tank capacities.
We provide a year warranty, and small orders are also accepted.
| Power | 2.0KW |
| Voltage | 12 V |
| Rotation Speed | 2500 RPM |
| Pressure | 16 MPa |
| Pump Displacement | 1.6 cc |
| Working Duty | S2 (2-4Mins) |
| Tank Capacity | 5 Liters |
| Mounting | Horizontal |
| Material | Steel |

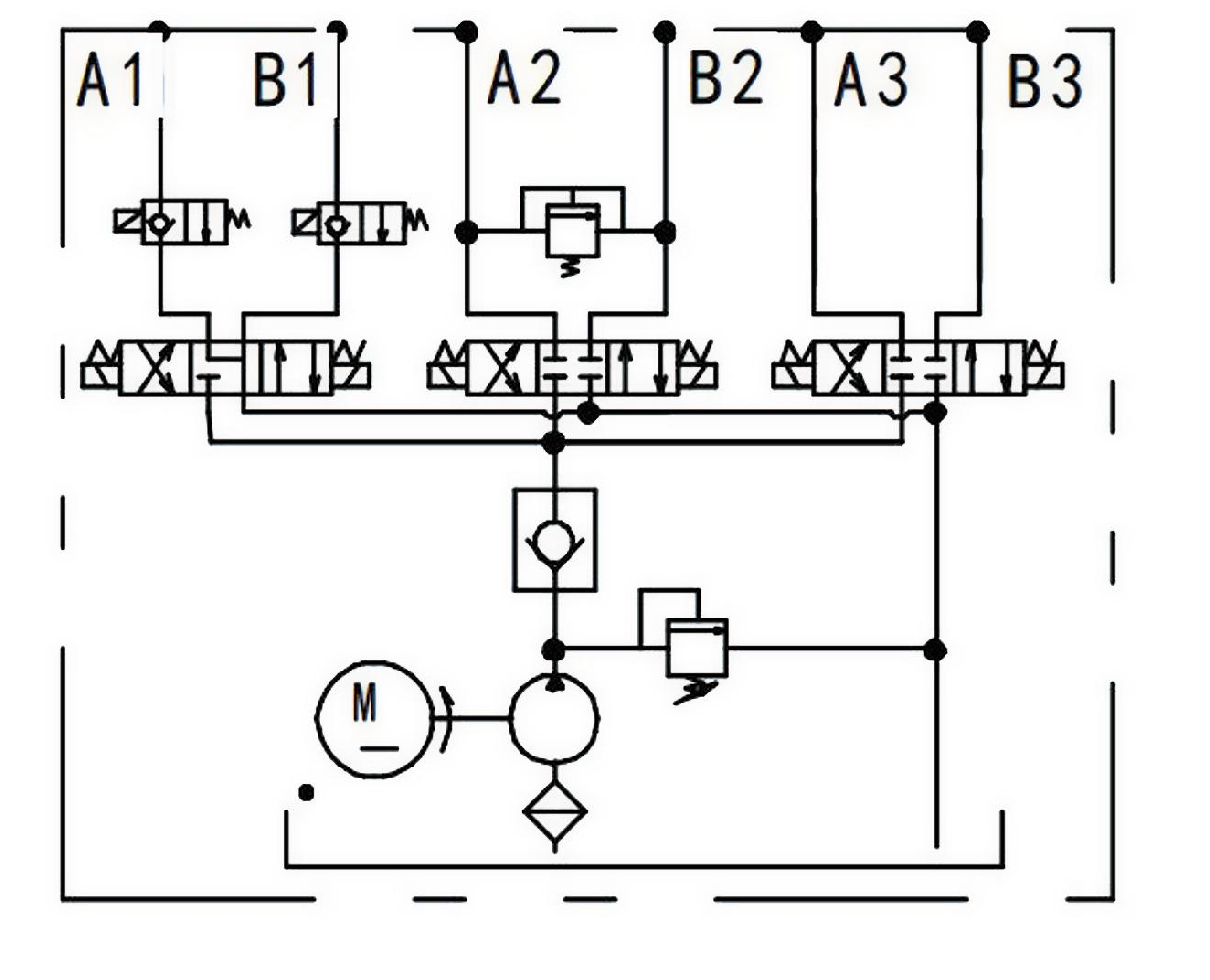

Snow plow hydraulic pump diagram:
Outline Dimension:
