24V 2.0 kW Aerial Work Vehicle Power Unit
This DC 24V hydraulic power unit is configured for aerial work vehicles. It combines a 2.0 kW motor, 1.6 cc/rev gear pump, integrated valve block, external return filter, and 4 L plastic reservoir in a horizontal assembly.
- DC 24V, 2.0 kW motor
- Motor speed: 2750 rpm
- 1.6 cc/rev gear pump
- System pressure: 24.5 MPa
- Three-position four-way and two-position four-way solenoid valves
- External return filter and 4 L plastic reservoir
- Horizontal mounting
- Description
- Technical Specifications
- Data Sheet
This aerial work vehicle hydraulic power unit integrates a high-pressure gear pump, DC motor, multi-purpose valve block, hydraulic valves, and oil reservoir. Its circuit is configured with one three-position four-way solenoid valve and one two-position four-way solenoid valve.
Configuration highlights
- DC 24V motor and solenoid valves
- External return filter
- Plastic oil reservoir
- Horizontal installation
For quotation, please provide the hydraulic schematic, required flow and pressure, operating sequence, mounting dimensions, duty cycle, and estimated quantity.
| Model | DC1-125BMF/JBHAQF(S) |
| Motor Voltage | DC 24V |
| Motor Power | 2.0 kW |
| Motor Speed | 2750 rpm |
| Solenoid Valve Voltage | DC 24V |
| Pump Displacement | 1.6 cc/rev |
| System Pressure | 24.5 MPa |
| Tank Capacity | 4 L |
| Oil Port Size | S1/S2: SAE 4; L/V/A0: SAE 6 |
| Installation | Horizontal |

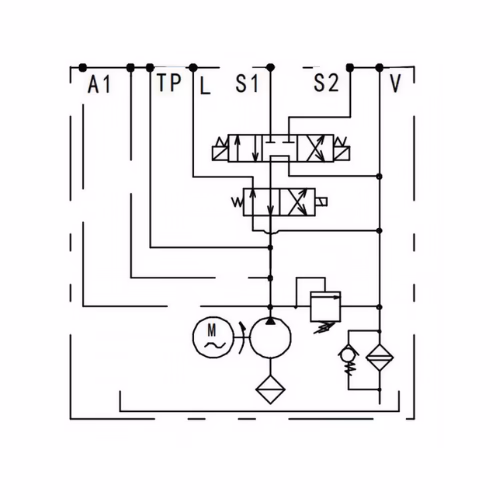

Hydraulic Circuit

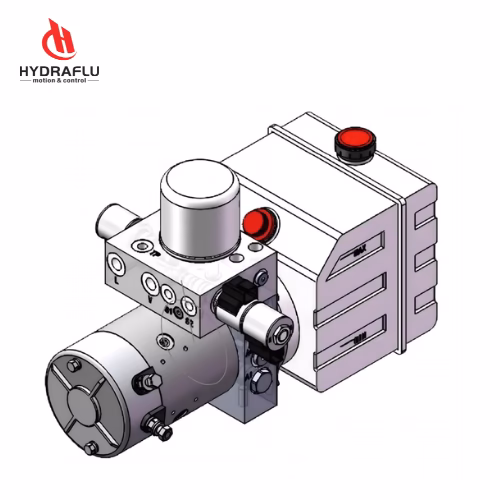

Outline Drawing
Dimensions are shown in millimeters. Confirm port interfaces and mounting dimensions before quotation or production.
HYDRAFLU model DC1-125BMF/JBHAQF(S) uses a DC 24V, 2.0 kW motor running at 2750 rpm. The pump displacement is 1.6 cc/rev, the system pressure is 24.5 MPa, and the plastic reservoir capacity is 4 L.
The hydraulic circuit includes one three-position four-way solenoid valve and one two-position four-way solenoid valve. The solenoid valve voltage is DC 24V.
The S1 and S2 ports are SAE 4, while the L, V, and A0 ports are SAE 6. The specified installation method is horizontal.
HYDRAFLU can evaluate customization from your hydraulic schematic, operating sequence, required flow and pressure, port arrangement, electrical supply, and mounting dimensions. For aerial work vehicles from well-known brands such as JLG, Genie, and Skyjack, the proposed unit is designed only as an alternative for compatible applications; compatibility must be verified before ordering. HYDRAFLU is not affiliated with or authorized by these brands.
Please send your hydraulic schematic or existing unit drawing, required flow and pressure, operating sequence, mounting dimensions, power supply, duty cycle, working conditions, and estimated order quantity.
